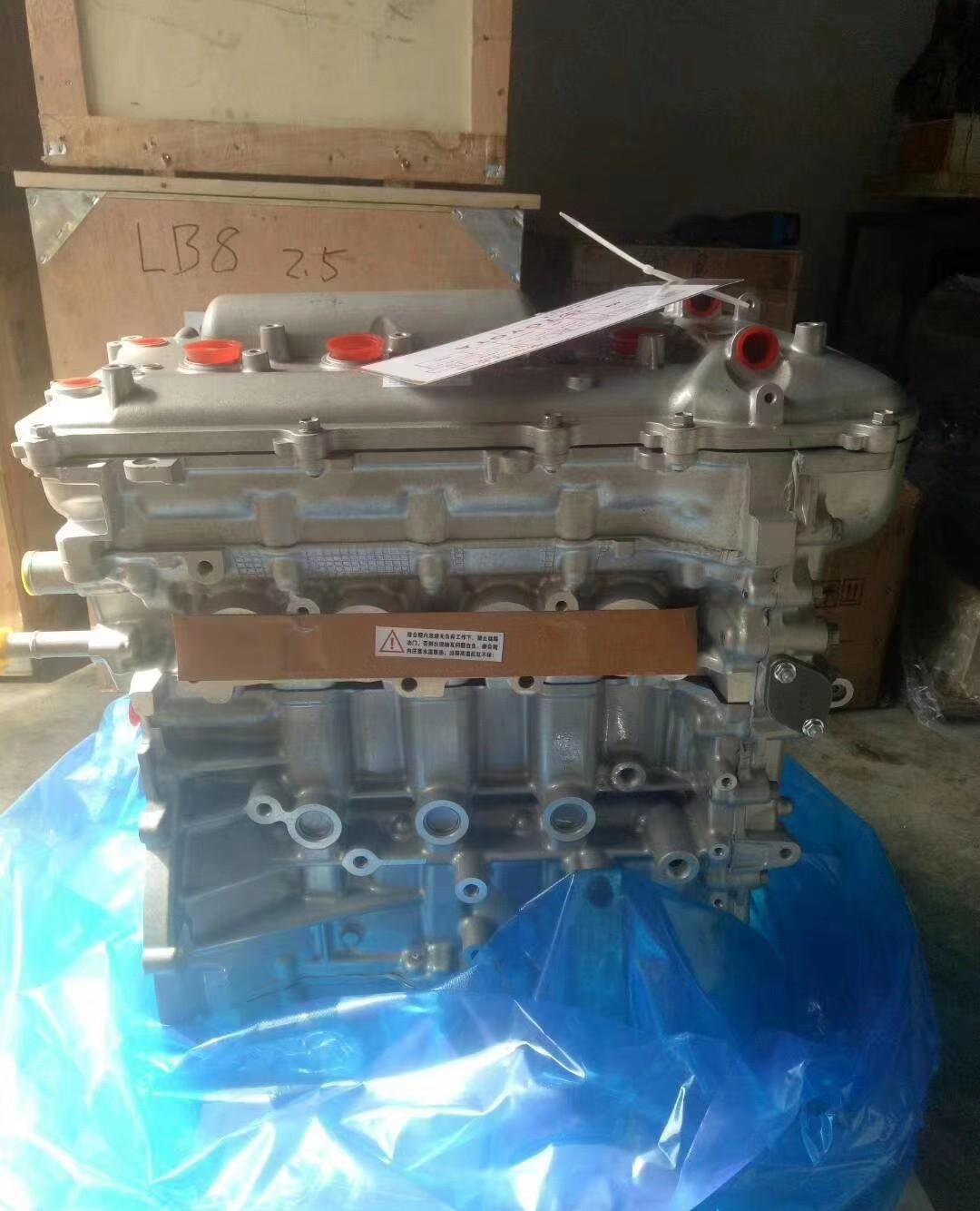

1ZR 2ZR ENGINE LONG BLOCK  |
Production years
2007-present
Cylinder block material
Aluminum
Cylinder head material
Aluminum
Fuel type
Gasoline
Fuel system
Sequential fuel injection
Configuration
Inline
Number of cylinders
4
Valves per cylinder
4
Valvetrain layout
DOHC
Bore, mm
80.5 mm (3.17 in)
Stroke, mm
88.3 mm (3.48 in)
Displacement, cc
1,798 cc (110 cu in)
Type of internal combustion engine
Four-stroke, naturally aspirated
Compression Ratio
10.0:1 - 2ZR-FE;
10.5:1 - 2ZR-FAE; 13.0:1 - 2ZR-FXE
Power, hp
95-148 hp (71-110 kW)/5,200-6,600
Torque, lb ft
105-129 lb-ft (142-175 Nm)/3,600-4,400
Engine weight
214 lbs (97 kg)
Firing order
1-3-4-2
Engine oil weight
SAE 5W-20
Engine oil capacity, liter
4.2 l (4.4 qt)
Oil change interval, mile
9,000 (15,000 km) / 12 months
Applications
Toyota Avensis, Toyota Corolla, Toyota Matrix, Toyota Allion, Toyota Premio, Toyota Yaris/Vitz, Scion xD, Toyota Corolla Rumion, Toyota iSt, Toyota Wish, Toyota Prius, Toyota C-HR hybrid, Toyota Voxy Hybrid, Toyota Auris, Toyota Verso, Lexus CT200h, Pontiac Vibe, Lotus Elise, Junpai D60
|
