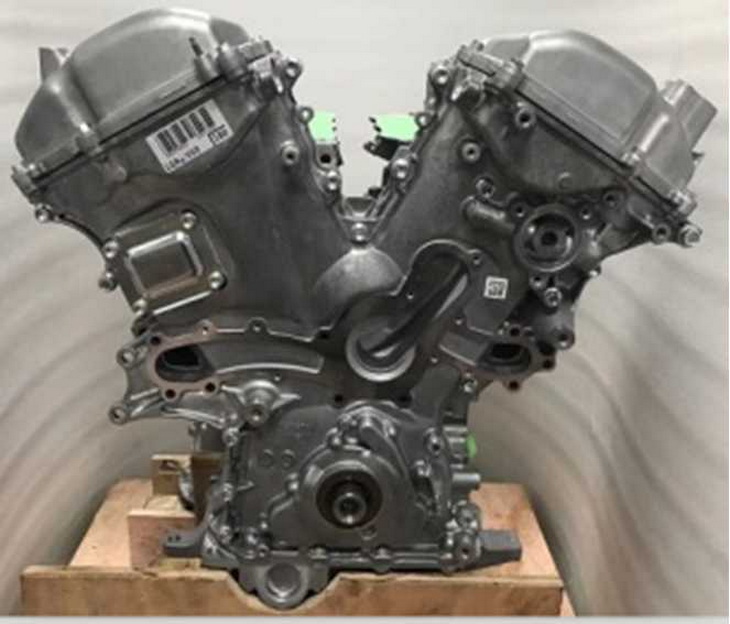

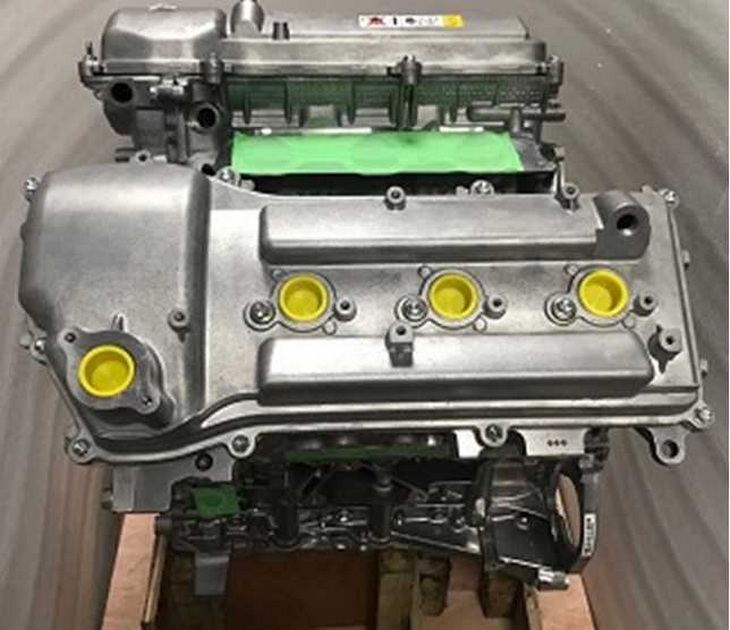

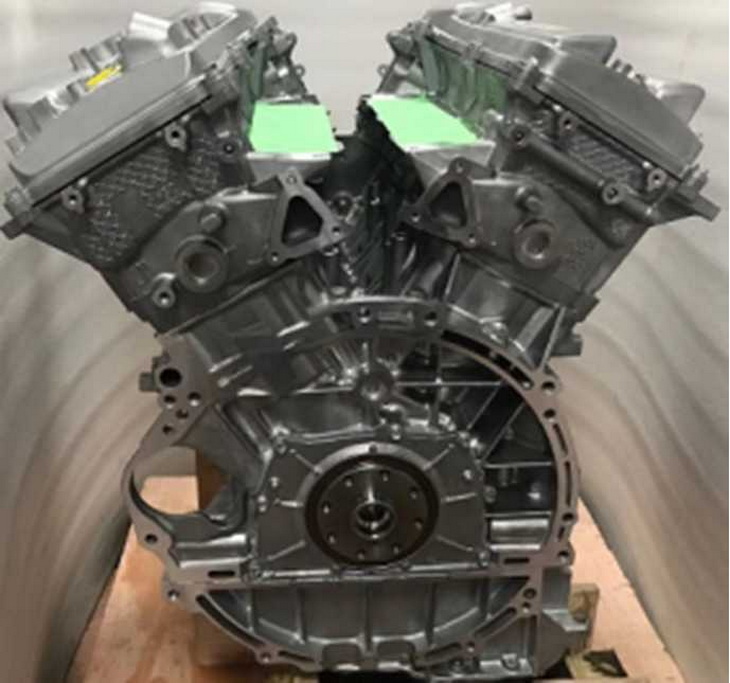

1GR/2GR/3GR/5GR engine long block |
Production years 2002-present
Cylinder block material
Aluminum
Cylinder head material
Aluminum
Fuel type
Gasoline
Fuel system
Fuel injection
Configuration
V
Number of cylinders
6
Valves per cylinder
4
Valvetrain layout
DOHC
Bore, mm
94.0 mm (3.7 in)
Stroke, mm
95.0 mm (3.74 in)
Displacement, cc
3,956 cc (241.4 cu in)
Type of internal combustion engine
Four-stroke, naturally aspirated
Compression Ratio
10.0:1
10.4:1 - Dual VVTi version
Power, hp
236-285 hp (176-210 kW)/5,200-5,600
Torque, lb ft
266-285 lb-ft (361-387 Nm)/3,600-4,400
Engine weight
366 lbs (166 kg)
Firing order
1-2-3-4-5-6
Engine oil weight
5W-30
Engine oil capacity, liter
5.2 (5.5 quarts)
Oil change interval, mile
6,000 (10,000 km) or 12 month
Applications
Toyota 4Runner/Hilux Surf, Toyota FJ Cruiser, Toyota Hilux, Toyota Land Cruiser 200, Toyota Land Cruiser Prado 120/150, Toyota Tacoma, Toyota Tundra, Toyota Fortuner, Lexus GX 400

|
